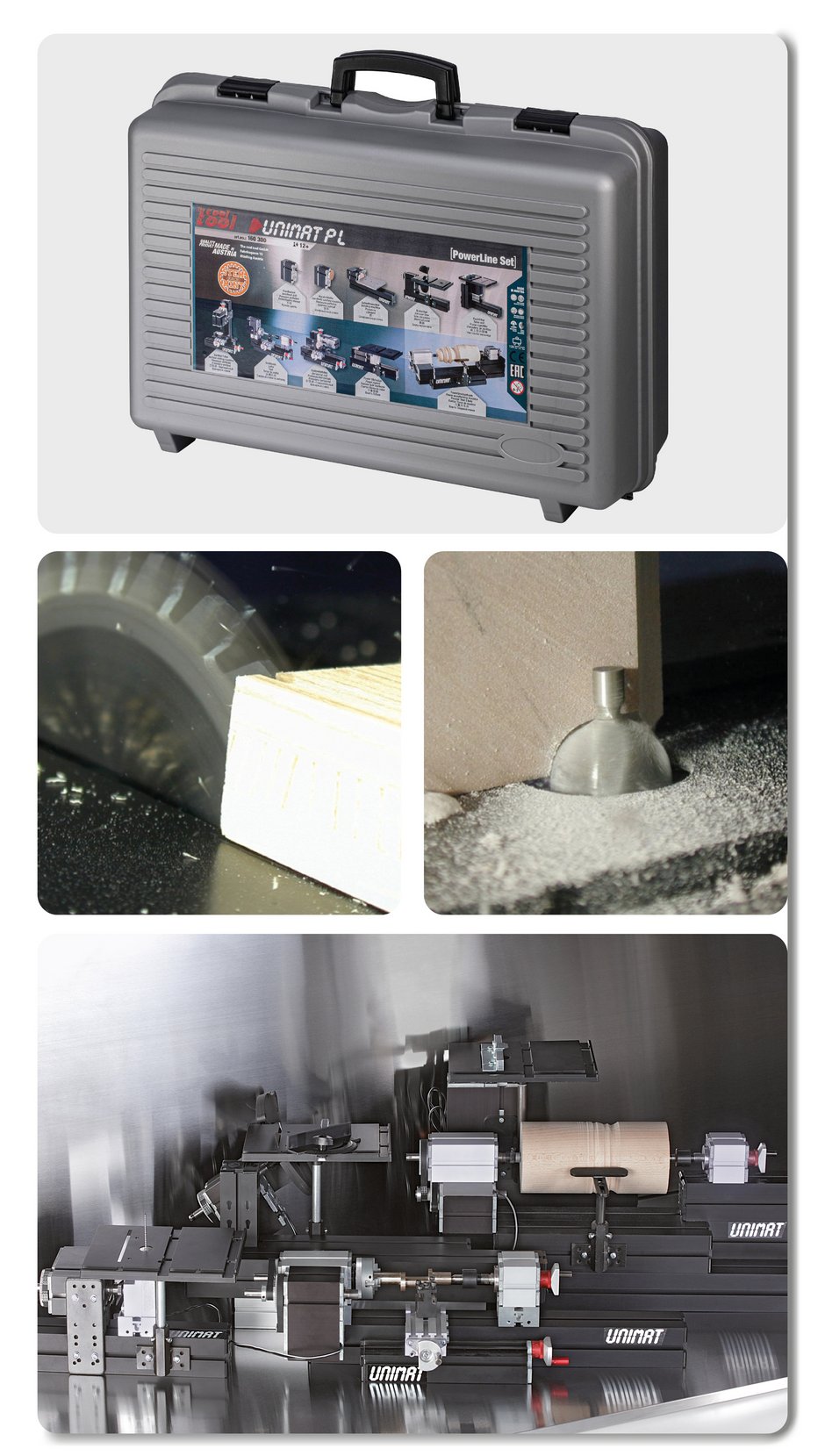

![[Translate to English:] UNIMAT PowerLine Übersicht mit Anwendungsbeispielen und Funktionen](/fileadmin/_processed_/a/c/csm_4er_PL_web_4abcb366ff.jpg)
Unimat PowerLine - Vocational training
160300
The UNIMAT PowerLine brings real workshop performance into the classroom — compact, modular and practice-oriented. With one single system, students can assemble up to ten different machines and gain hands-on experience with the fundamental processes of metalworking and woodworking in the environments where these skills matter most: training workshops, career orientation programmes and technical education.
Designed for students aged 14 and above, and for supervised use in vocational training and schools.
Workshop Performance for Real Technical Training
The PowerLine is the high-performance expansion stage of the UNIMAT system. While the child-safe MetalLine set, suitable from age 12, covers the technical foundation level, the PowerLine goes one step further: more motor power, more torque and the ability to work with larger workpieces.
This also means that the PowerLine is intentionally not a toy. It is used under supervision and after proper instruction — just like a real machine in a professional workshop. Students experience responsible machine operation under realistic conditions and are prepared for the requirements of technical training, without the need to invest in a complete machine park.
10 Machines from One System
One Kit, Ten Machines — Reconfiguration as Part of the Learning Process
The modular design is the didactic core of the system. Using the same drive unit and only a few additional components, students can build up to ten different machine variants — from a lathe and circular saw to a handheld drill.
The quick conversion between machine variants is not just a practical feature; it is part of the learning process. Students who configure, align and commission a machine themselves gain a deeper understanding of its structure, function and operating principles.
In a compact space, the PowerLine creates a fully functional training workshop in miniature — maintainable, expandable and designed for many years of educational use.
Test which job is the right for your students
Career orientation works best when it is hands-on. The ten machine variants give young people a realistic impression of how different technical professions work — and help them discover their own interests and strengths.
| Machine variants | Professional fields & vocational training pathways |
|---|---|
| Lathe, horizontal and vertical milling machine, face milling machine | Machining and metal technology, mechanical engineering, precision engineering |
| Circular saw, jig saw, wood lathe | Wood technology, carpentry, model making |
| Sanding machine, hand sander | Surface finishing, tool maintenance, metal construction |
| Hand drill, vertical drilling | General manufacturing, assembly, precision mechanics |
This turns a lesson into an experience that makes career profiles tangible — without the need for a company visit.
Machine variations

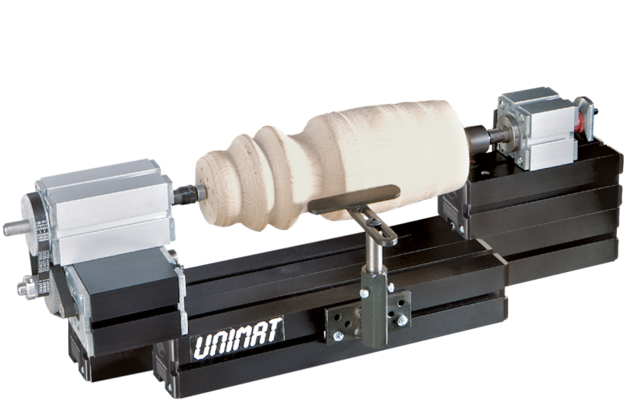

Woodlathe PowerLine
With the Power-Drive Unit and Reduction Set even hard wood up to 100mm diameter can be turned. The professional woodturning attachement provides a secure and vibration free tool rest.
Consists of UNIMAT ML and
- Power-Drive Unit [164 320]
- PowerLine Reduction Set [164 325]
- Extra longmachine bed 460 mm [162 400]
- Professional Woodturning Attachment [162 340]

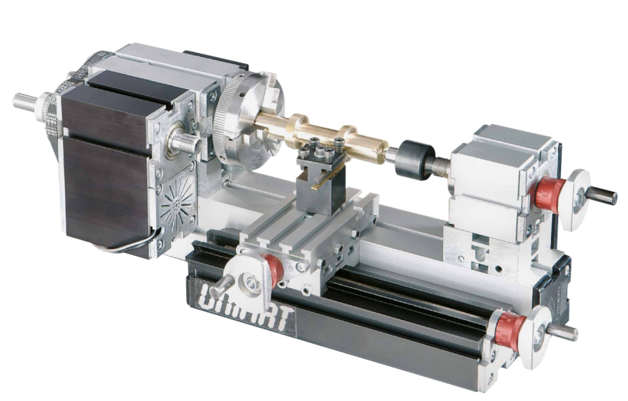

Lathe PowerLine
For precise working up to diameters of 50 mm. With an excentrically adjusted 4-Jaw-Chuck even crankshafts from brass brass can be manufactured. The Reduction Kit combines the the strength of the PowerLine power with the accuracy of the MetalLine.
Consists of UNIMAT ML and
- Power-Drive Unit [164 320]
- PowerLine reduction kit [164 325]

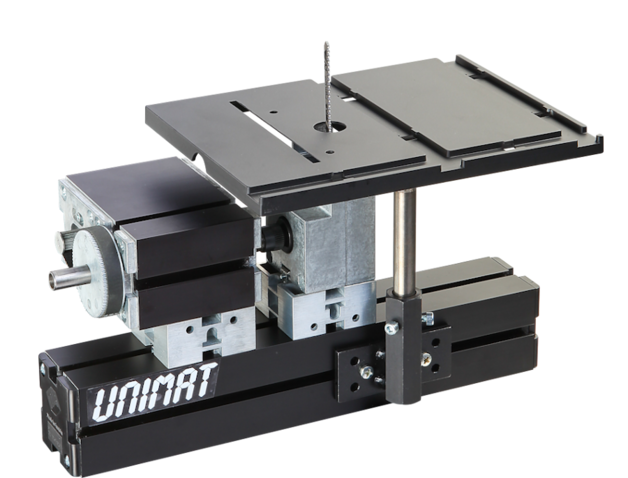

Jig Saw PowerLine
with adjustable stroke
Grinded steel tappet in CNC processed die-casted housing. Adjustable stroke - 4mm (child-friendly) or 8 mm (high performance). Universal saw blade attachment for commercial saw blades.
Constist of UNIMAT ML 6in1 and
- Power-Drive Unit [164 320]
- Jig saw ML [164 080]
- Saw/milling table [162 330]

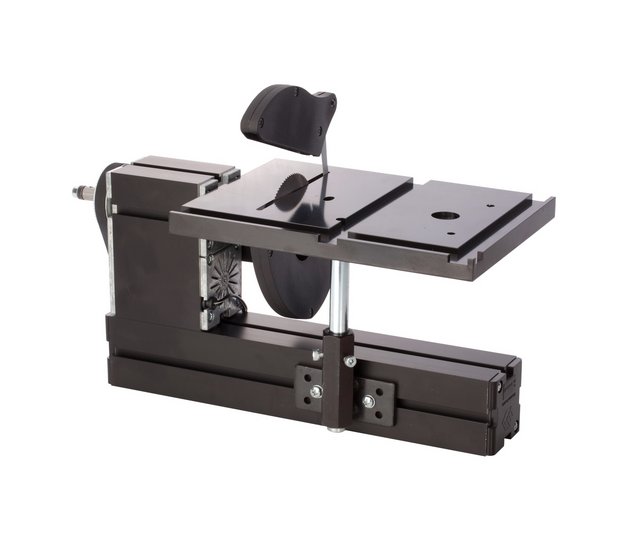

Circular Saw PowerLine
Whether aluminum sheets, wood or acrylics, etc. with the PowerLine circular saw, items from different materials may be cut cleanly. With the adjustable fence and the graduated mitre stop, work pieces can be guided precisely.
Consists of a UNIMAT Set and
- circular saw [162 330 SET]
- Power-Drive Unit [164 320]
- Machine bed short [U7]
Horizontal mill
Flexible Multi-Axis Machining with Three-Slide Setup
The use of three slides allows flexible machining of workpieces on all planes – ideal for complex multi-axis milling tasks.
Travel distances:
X-axis: 145 mm
Y- and Z-axis: 32 mm each
Tool holder:
Compatible with tools featuring a 1 to 6 mm shank diameter
The perfect solution for precise multi-side machining in model building or technical education.
Vertical mill
Two slides form a precise cross table with travel distances of 145 mm (X-axis) and 32 mm (Y-axis).
A third slide adds the Z-axis, also with a 32 mm travel distance.
Thanks to the finely adjustable handwheels, drill holes can be made with precise depth and positioning – ideal for accurate work in wood, plastic, or soft metals.
The collet chuck is suitable for tools with 1 to 6 mm shaft diameter.

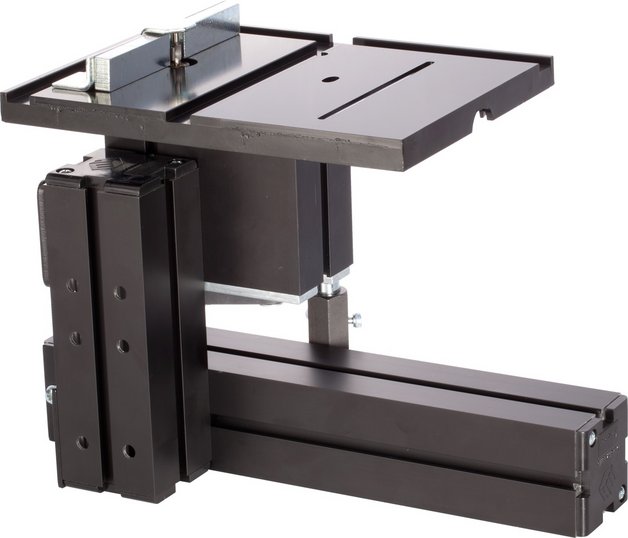

Face milling machine
Ideal for leveling metal surfaces, creating precise fits and steps – or, in combination with the indexing head, for milling 4-, 6-, or 8-sided profiles.

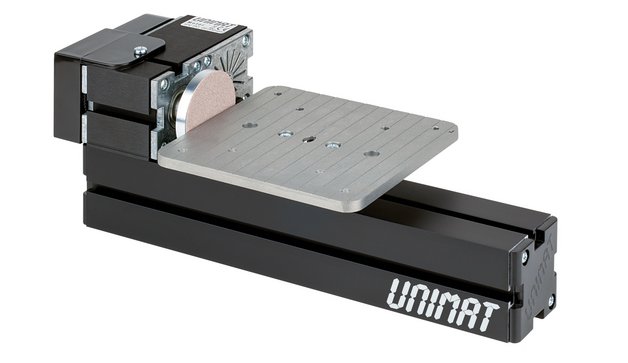

Sanding machine
Safe sanding – perfect for the final finishing touches on workpieces or for easily resharpening your own tools.

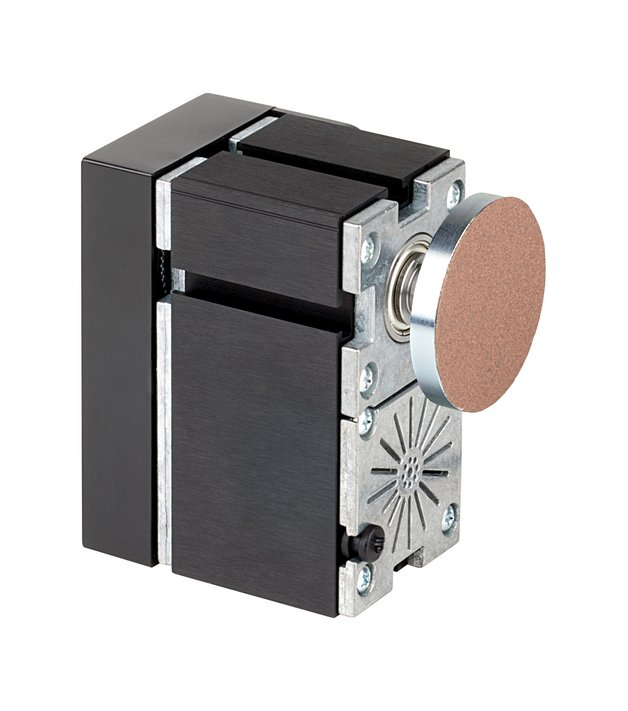

Hand sander
The handheld sander enables sanding work even on large workpieces – ideal for hard-to-reach areas.
Hand held drill
The drill machine is ideal for precise drilling in wood – using drill bits or engraving tools from 1 to 6 mm.
Perfect for drilling in hard-to-reach areas or for fine engraving work.
🔧 Modular system for maximum flexibility
For anyone who needs a versatile machine workshop in a compact space, the PowerLine system is the ideal solution.
Thanks to its intelligent modular design, a single system can be configured into up to 10 different machine variants — from a sanding machine to a circular saw.
Fast and easy conversion between the different setups provides maximum flexibility, making PowerLine perfect for workshops, technical training and ambitious creative projects at home.
Responsibility from the Start
The PowerLine offers significantly more power than the child-safe basic system. It is therefore designed for students aged 14 and above and must always be used under supervision and after proper safety instruction.
This is intentional: learning how to handle a powerful machine responsibly and under guidance is an essential part of technical education. Students learn how to use protective equipment, secure workpieces correctly and work safely — just as they will be expected to do later in a professional workshop.
A variable power transformer (Art. 161 410) is recommended for all PowerLine applications.
What Students Take Away
Students gain practical experience with fundamental metalworking and woodworking processes on real machines.
- They learn how to configure, align and commission machines themselves.
- They transfer technical drawings and dimensions into finished workpieces.
- They develop precision, care and a strong awareness of safety.
- They discover their own interests and strengths for future career choices.
