Tools

[Translate to English:] Symbolbild
HSS Drill Set

20 pcs twist drills 1 - 4 mm in 0,5 mm steps

Each drill 2x

Read more

[162193]

Milling Tool Set 3, 4, 5, 6 mm

HSS milling tools for processing wood, metals and plastic

Read more

[162190]

Fly Cutter

For levelling of metals, construction of fittings or accurate steps. Or for production of square, hexagonal and octagonal pieces by using the dividing…

Read more

[162200]

Gear Milling Head

homemade gear wheels. Incl. Modul 0,5. + 1

necessary accessories for gear milling:

  • Art.Nr.162040 Dividing Attachment
  • Art.Nr.162030 Countershaft…
Read more

[162210]

HSS - Turning Tool - Kit - 5 pcs.

More technical data you can find in the enclosed flyer

Read more

[162231]

End mill set 1/8“ shank 10 pcs

10 pcs. Solid Carbide Bits two-flute end mills with 1/8 inch shank

5pcs 1.6mm, 5 pcs 2.0mm

Other sizes on request (0.6, 0.8, 1, 1.2, 3.0mm, 1/8 inch…

Read more

[F9001010]

Materials and Projects

[Translate to English:]
Special milling foam

Special milling foam

25x25x50 mm, medium density for 3D projects on multiacis machines (packing units 30 pcs.)

Read more

[166FOAM-S]

Symbolbild
Special colored Acrylic

50x50x3 mm, usable for milling

(cast acrylic - not extruded)

(packing unit 30 pcs.)

Read more

[166PLEX-S]

Spring element

This material package includes:

Ø 12mm aluminium rod, spring, retaining washer, manual with plan (for metal lathe)

Packing unit 15 pcs.



Read more

[166FEDS]

Wood ledge

This material package includes wood ledges (15x10x170 mm) for the edu-project "Zinken/Nuten fräsen"

packing unit 30 pcs.

Read more

[163LEIS]

Corian (artificial stone)

In this material package included:

Corian (artificial stone)

50x50x12 mm

packing uni 15 pcs.

Read more

[166CORS]

Jeweller wax

In this package included:

Jeweller wax (Ø 33x70 mm), ideal for milling and turning, without cooling

Packing unit 10 pcs

Read more

[166WAXS]

[Translate to English:] Symbolbild
Aluminium

In this material package included:

Aluminium (Ø 12x100mm,  with center drilled machinable alloy

Packing unit 15 pcs.

Read more

[166ALUS]

[Translate to English:]
Didactic documentation CNC

Didactic documentation for CNC-Education

Introduction to g-code programming, CNC technology and a detailed software tutorial on over 50 pages.

Read more

[VSEDU4]

Clamping

Face plate steel

a durable and accurate accessory

Ø 49mm

universal use for sanding or turning wood or
metals pieces affixed to the plate.
e.g. for turning of egg…

Read more

[162080]

Micro Clamp

easy to use one hand clamp

Read more

[162180]

Milling-Vice MetalLine

Milling - Vice made of tool steel.

Chucking range: 0 - 41mm

Dimension: 88 (109) x 50 x 26mm (LxWxH)

Read more

[164090]

2 position tool post
  • 2 position tool post, for 3.5 - 8 mm tool body height
  • incl height adjustment plates and fastening parts
Read more

[164110]

Precision Live Center

Grinded center in two special ball bearings enables higher accuracy and better stability.

Read more

[164450]

10 Precision Metal Collets

This brass collets allow for improved grip, durability and precision.

Diameters: 1mm, 1.5 mm, 2mm, 2.35mm, 3mm, 1/8" (= 3.175mm), 3.5mm, 4mm, 5mm,…

Read more

[164460]

Drill chuck

Clamping range 0.6 to 6 mm

M12x1

Read more

[162090]

Clamping Kit ML

For fixation of various parts on the ML cross-slide or ML saw/sanding table ML (164080)

Read more

[164490]

Power and Drive

Power Drive Unit

The power drive for bigger and harder workpieces.

Not only provides more power for existing applications, but also lets you expand and upgrade your…

Read more

[164320]

12V Distribution Cabinet with 5 outlets and 2 cables

Combine several UNIMAT 12V adapters into one power source.

Drive up to 5 motors at the same time.

Ideal for the Power Drive Unit (art. 162 320).

Read more

[162492]

Connection cable with banana plugs

For connecting Variable power adaptor (161410) or third-party power supplies to the UNIMAT 12V Distribution Cabinet (Art. 162 492).

Read more

[Out Cab]

Unimat ML Countershaft

Precisely machined metal profiles and covers increase the accuracy and stability of the countershaft.

Ideal combination with Tailstock Full Metal…

Read more

[164035]

Variable Power Adaptor 12V

Thyristor adjust adaptor incl. 162 491 + Outcab

Input: 230V, 50-60Hz, 85W

Output: 12V, 5A

Read more

[161410]

Unimat CNC-rotating axis incl. stepper motor

Precisely machined metal profiles and covers increase the accuracy and stability of the CNC-rotary-attachment.

Toothed belt reduction: 2 (18:36 -…

Read more

[164300 CNC]

Unimat CNC Cross Slide

All parts are precisely machined.

Stepper motor: 2A

Travel: 50mm





Also available with travel 80mm for z-axis (164 068CNC)

Read more

[164060CNC]

Unimat CNC Longitudial-slide 200mm

All parts are precisely machined.
Stepper motor: 2A
Travel: 145mm

Also available in 500mm (164 482CNC)

Read more

[164480 CNC]

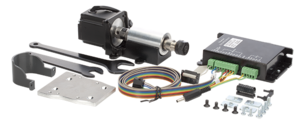

Unimat CNC Milling and Engraving Spindle
Speed2000 - 15000 rpm
Power30W
Collet typeER11
Collets useable 1 - 6.35mm (1x 1/8" included)
Read more

[164420CNC]

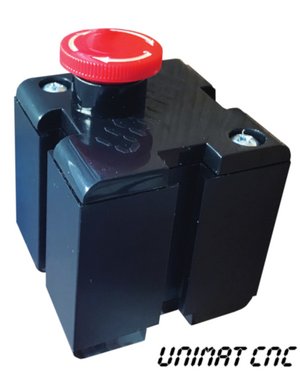

E-stop/Relay module CNC

with integrated Motor On/Off-Relay (for use of M3 and M5 commands), triggers/releases software emergency stop and head spindle motor brake

Suitable…

Read more

[164425CNC]

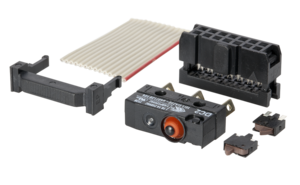

End-swich set for 3 axis

[CNC-switch]

Service Parts

Unimat Spare Part List

Unimat spare parts like belts, screws, connectors, etc incl exact part number can be found in this list.

Read more
Resource Kit Unimat CNC single

Resource Kit including the most important parts für service and maintenance of Unimat CNC machines

Contains connection elements, drive belt, collet,…

Read more

[166074RP]

Extensions and Further

Safety goggle

Very light safety googles with transparent frame and bracket - unisex. Suitable for students.

Combines comfort with reliable protection.

Read more

[A1D100004]

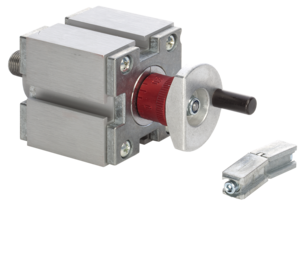

Unimat ML Tailstock

All parts are machined precisely for accurate centre and pearl drilling.

Quill travel: 30mm

Read more

[164040]

Special machine bed 330mm

Special reinforced profile for a higher twist resistant.

colour: silver

Read more

[164400]

Steady Rest

provides a means of supporting long, slender parts and long pieces of bar stock

or to drill a center hole in the end of a long shaft (center drill…

Read more

[1074]

TCTControl 4-Axis Controller

Control electronics incl motion control and pre-installed CNC software

Read more

[TCTCONT4]

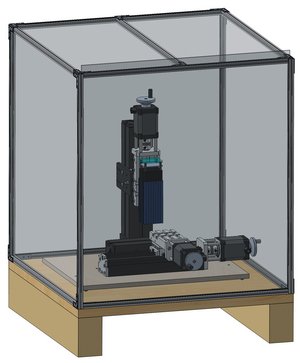

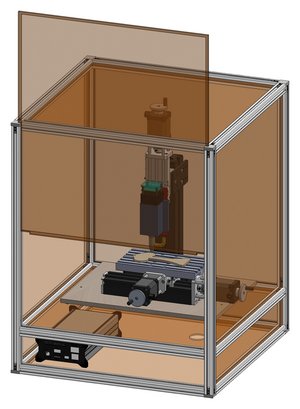

Housing for UNIMAT CNC machines (turning, milling, laser)

Dimensions of the housing:

Width = 455 mm

Depth = 450 mm

Height = 565 mm (Housing alone) -> 585 mm with the knob on the front side

Read more

[164540]
